Our Electro Mechnical Solutions division Offers its services to Construction, Interior & Turnkey Solutions Building maintenanceand Service industry.
Our Projects: Industrial, residential and Commercial Infrastructure Projects
This Division is our premier Engineering Solutions provider and specialist. Founded in the year 2010, over the years, kEY M.E.P. Solutions has built-up a substantial reputation and is actively engaged in Turnkey projects in areas such as Electro-Mechanical works comprising, Plumbing & Drainage, Fire Fighting & HVAC / Active Fire Protection and Electrical including Low Current systems.
This division started its operations in the Kingdom of Saudi Arabia. We have earned a “customer oriented” reputation by keepingits focus on providing the best value to our customers through quality products and services. kEY M.E.P. Solutions is also planning to expand its operations shortly in the United Arab Emirates and Cyprus.
Advance Matrix Structural Solutions Provides answers for Bridges and Concrete Repairs using up to date systems from leading manufacturers like ETIC, FOSROC, BASF, HILTI, CS Group & Prospect Specialties and more.
Over the years we have grown and changed the construction industries in Saudi Arabia. We have succeeded to establish ourselves as one of the most prominent specialties solutions in the Kingdom. We believe that the attention to detail established over the years on our scope market will enable us to bring a higher level of service and craftsmanship to the base building market. Our Experience and expertise enable the Company to offer clients a local solution backed by international engineering and construction techniques.
Advance Matrix Structural Solutions’s philosophy is simple: to offer the client the best solution in terms of design, supply, and construction for their market and project.
With significant project expertise and a full installation service, ASPECT is able to provide expert support and advice from design through to specification and installation.
We works closely with a wide range of end users and main contractors to provide a professional, expert service to its clients. Our team will manage the project from survey and specification through to installation and hand over, removing risk and saving time for the customer.
You can expect from ASPECT
- Rapid installation – minimum down time
- Certified & trained applicators
- Projects Completed on Schedule and Within Budget
- Superior Project Management
- Labor and Material Controls
- Value Engineering Analysis if Requested
- Time proven installations
- ADA compliant Systems
- Wide variety of system optionsMulego int, sena, consiIs,
Structural Solutions Provides answers for Bridges and Concrete Repairs using up to date systems from leading manufacturers like ETIC, FOSROC,BASF, HILTI, CS Group& Prospec Specialties and more.
Over the years we have grown and changed the construction industries in Saudi Arabia. We have succeeded to establish ourselves as one of the most prominent specialties solutions in the Kingdom. We believe that the attention to detail established over the years on our scope market will enable us to bring higher level of service and craftsmanship to the base building market. Our Experience and expertise enables the Company to offer clients a local solution backed by international engineering and construction techniques.
Our philosophy is simple: to offer the client the best solution in terms of design, supply and construction for their market and project.
Advance Matrix Structural Solutions Provides answers for Bridges and Concrete Repairs using up to date systems from leading manufacturers like ETIC, FOSROC, BASF, HILTI, CS Group & Prospect Specialties and more.
Over the years we have grown and changed the construction industries in Saudi Arabia. We have succeeded to establish ourselves as one of the most prominent specialties solutions in the Kingdom. We believe that the attention to detail established over the years on our scope market will enable us to bring a higher level of service and craftsmanship to the base building market. Our Experience and expertise enable the Company to offer clients a local solution backed by international engineering and construction techniques.
Advance Matrix Structural Solutions’s philosophy is simple: to offer the client the best solution in terms of design, supply, and construction for their market and project.
Passive Fire Protection Services
Concept of Fire-Resistant Cable Coating
Cables are prone to self-igniting locally due overheating caused by short circuiting. They can also be overheated due to external factors such as fires. Fire-resistant cable coatings are used to prevent the propagation of fire along internal electrical cables and to protect the functionality of those cables .These coatings are used worldwide in a wide variety of structures, including service tunnels, power plants, substations, and electrical and plant rooms.
OMNIV offers application of spray and brush-applied fire-resistant coatings on cables and cable-trays, preventing the spread of fire for 30 minutes and the ignition of cables for at least 40 minutes, even with a direct flame and surrounding temperature higher than 260°C. The applied coatings retard any direct flames travelling through horizontal and vertical cables and cable trays. OMNIV offers its expertise in application of cable coatings in accordance with the project specifications, industry standards, and manufacturers’ recommendations.
OMNIV offers application of four basic types of fire resistant ductwork that could be required or have special use under fire conditions. The following terms are used in identifying varying performance criteria for such ducts.
- Ventilation fire ductwork
- Smoke Extract ductwork
- Non-domestic kitchen extract ductwork
- Pressurization ductwork
OMNIV provides two kind of tunnel fire protection systems
Fire Board Panel Systems
Fire board panel systems have been developed to create a protective membrane either directly fixed to the structure or to a steel framing system. This framing system can be suspended from the load-bearing structure or, depending on the span of the ceiling, can be suspended along the walls of the tunnel only. From below the Fire board panels will be screwed or bolted to the suspended steel frame to enable the removal for inspection at a later date. In case of refurbishment of the tunnel, the protective membrane system is both technically and commercially the most feasible option.
Fire Spray Systems
Fire spray systems have been developed as a proven method of fire protection for the tunnels industry. They include a range of integrated coating systems that restrict the effects of hydrocarbon fires on tunnel structures, and improve the sound absorption performance on the tunnel linings.
Fire spray systems are an applied, single package factory controlled premix, based on vermiculite and Portland cement, producing a monolithic coating able to withstand the thermal shocks experienced in a high intensity hydrocarbon fire. Concrete structures in particular, will be protected from explosive spalling when coated with fire spray products. Minimum practical thicknesses of 8mm unreinforced and 15mm reinforced, can be achieved offering the designer advantages should the traffic clearance envelope be critical within the road tunnel.
Dependent upon the road tunnels design requirements, fire spray systems can be trowelled smooth and coated to withstand the severe sulfur laden atmospheres encountered in road tunnels, whilst enabling ease of cleaning, increased light reflectance, and protection of the concrete from exhaust deposits, de-icing salts etc.
Fire Stopping and Penetration Sealing
Hydrocarbon Fire Protection

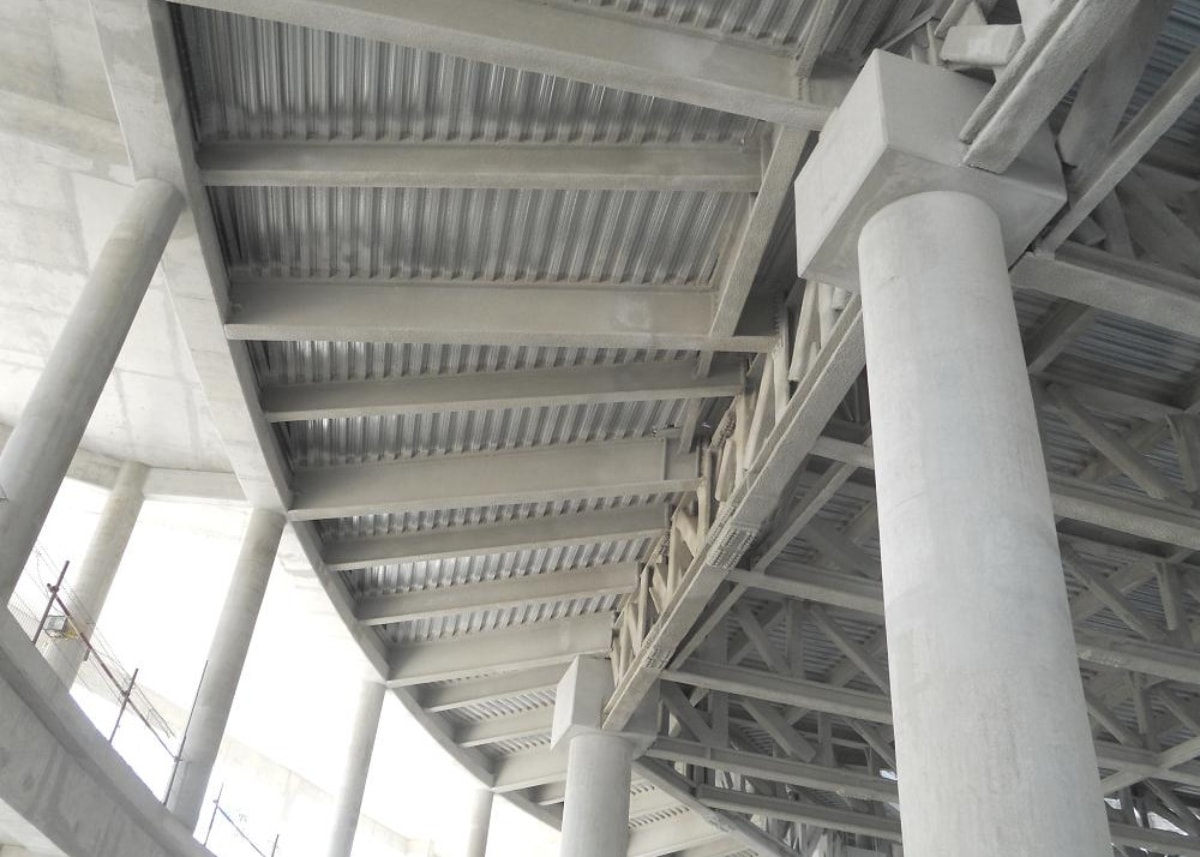

Structural Steel Protection Systems
Fire Barriers
Fire barriers systems are slabs of high density rock wool with a white endothermic, ablative coating designed to stop the spread of fire through openings in fire resistant walls or floors. Fire barriers provide an enhanced acoustic performance and up to 240 minutes fire protection.
Fire Compounds
Fire compound systems are gypsum based with thermal and acoustic properties, which provide a fire seal around service penetrations in walls and floors. Fire compound systems are particularly designed for use where a loading of the penetration is applicable, such as service risers and plant room floors. Fire compounds are quick setting to provide a smoke seal offering up to 240 minutes fire resistance.
Intumescent Sealants
Intumescent Sealant systems are water based acrylic intumescent or silicone based fire protection sealants. Adhering to most types of surface, which when cured form a non-hardening seal; preventing the passage of smoke, toxic gases and fire for up to 240 minutes fire protection.
OMNIV Technical team can provide the following services
- Bill of Quantities preparation and study.
- System design to manage the process of documenting all fire barrier penetrations and firestops within a building.
- System maps the location of all walls and floors, inventories each firestop (along with a picture of the installation) and records when it was installed, what materials were used and its ULC System number.
- Labeling system on fire-rated walls and floors provide a permanent record of firestop locations for contractors doing renovation work.Our staff’s knowledge of firestop systems is impeccable and the workmanship, scheduling and quality control system are every time beyond our client expectations.
OMNIV specializes in application of intumescent fireproofing coatings for hydrocarbon-fires and jet-fires in the Oil & Gas environment. OMNIV PFP applies both solvent-based and water-based intumescent fireproofing coatings.
There are two common types of fire that may occur in a hydrocarbon-processing complex: The first is a pool fire and this occurs when a flammable liquid leaks from a vessel or pipeline to form a fluid reservoir, which then ignites; The second, and potentially more dangerous type, is a jet fire which can happen following the rupture of a pressurized vessel and/or gas line.
A hydrocarbon pool fire will generate temperatures of more than 1000 Celsius within ten minutes of ignition with heat fluxes of around 150kW/m2, while a jet fire will exhibit the same temperature rise, but the heat flux could be double that of the pool fire. Three distinct types of passive fire protection products are normally used in hydrocarbon-processing complexes:
- Cementitious products generally based on Portland cement plus lightweight aggregates. Cementitious materials protect the steel in two ways. Firstly, they contain trapped moisture, which in a fire situation will boil and keep the steel temperature around 100 Celsius until all the water has disappeared. The product then acts, secondly, as an insulator.
- Intumescent coatings generally epoxy based spray or hand applied. In the event of a fire these coatings intumesce (i.e. they swell to many times their original thickness) to form a tough insulating char.
- Blanket systems made from man-made fibers which use insulation as their primary fire protection mechanism. They are used primarily for cable tray and valve protection
OMNIV can accommodate every aspect of fireproofing needs.
We hold licenses for most of the fireproofing products and our highly experienced professional installers and management team are trained and certified for the application of the industry’s most requested products.
We are skilled in the application of :
Thin-film Intumescent Fire Protective Coatings
Thin film applied Intumescent paint is a fast method of providing up to 180 minutes fire protection to structural steelwork. Intumescent coatings provide an appearance similar to that of paint, with basic to high gloss finishes now available. At ambient temperatures Intumescent paint systems remains stable. However in a fire condition, the increase in temperature activates a chemical reaction which then causes the intumescent coating to expand many times its original thickness.

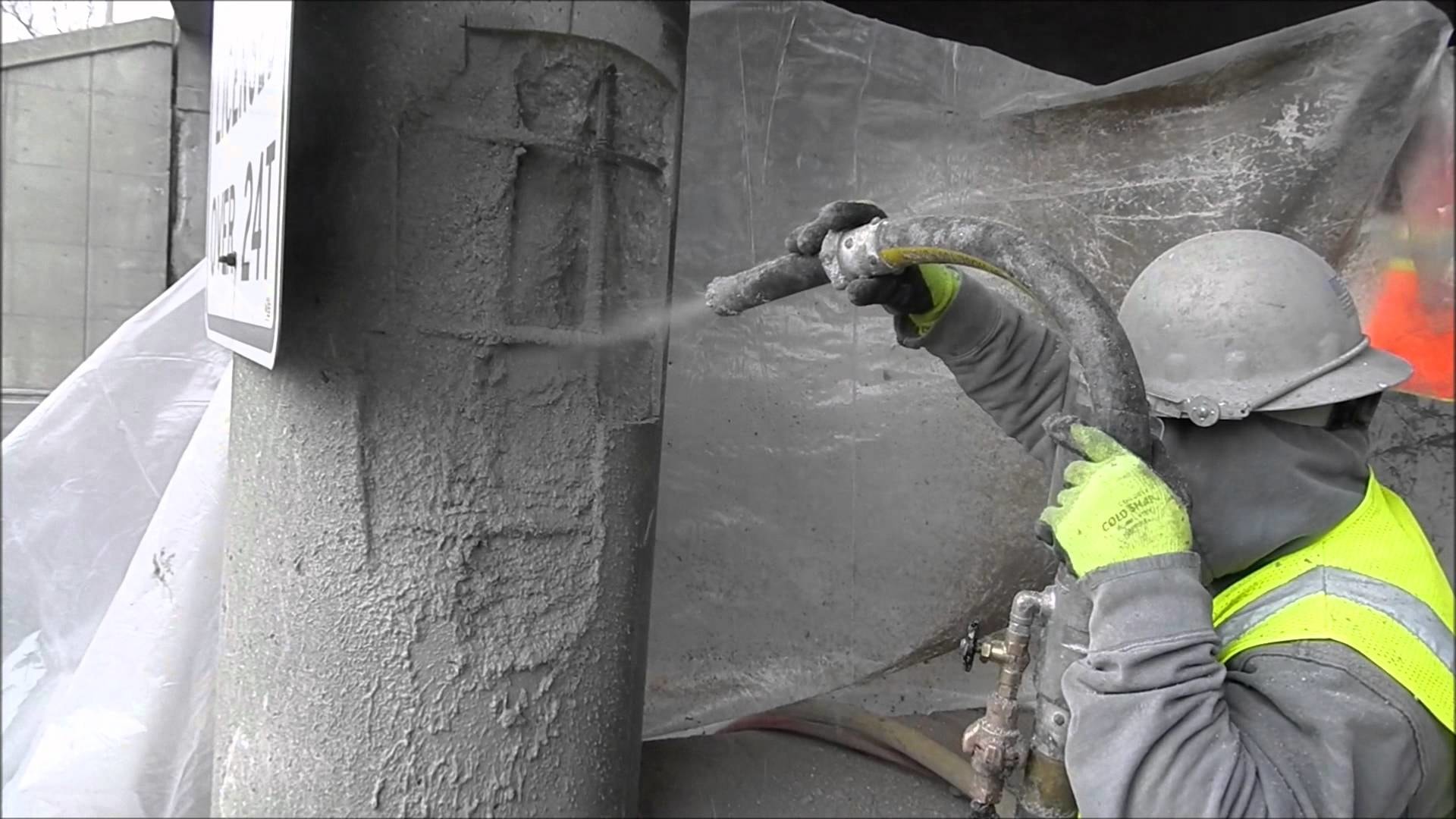

Cementitious Fire Spray
Cementitious fire spray is a fast and efficient method of providing up to 240 minutes fire protection to structural steelwork. Used in the commercial, petro-chemical and tunnels markets, cementitious fire sprays withstand impact and abrasion, yet remain flexible to accept design changes without incurring major cost and time delays.
Cementitious fire sprays may be applied within environments where limited exposure to the elements is likely throughout the building phase of the project. They can also be used for application to steel and concrete frames, metal floors or roof decks and return air plenums.
Boarded Fire Protection Systems
Boarded fire protection systems offer a non-combustible and cost efficient method of providing up to 240 minutes fire protection to structural steelwork. As the original means of affording structural fire protection, this method has seen major developments in the types of boards available today.
Boarded fire protection systems can be durable, resistant to water and beneficial to acoustic performance. Certain fire boarded systems are able to accept decorative applications, such as paint or plaster, providing an aesthetic finish without the need for further preparation.
Industrial Fireproofing
We provide these services for new construction, remedial or maintenance projects :
- Shop Applied Fireproofing of individual members or welded/bolted frames
- Module Yard Fireproofing of entire modules and connections on assembled modules
- On-Site Fireproofing of existing structures and equipment supports, tie-ins or stick built steel
- Chartek & Pitt-Char epoxies for industrial and commercial applications.
Commercial Fireproofing
OMNIV specializes in sprayed and hand applied fireproofing for commercial & institutional projects. We are skilled in bringing buildings up to national, provincial, and city fire codes.
Our highly experienced professional applicators, installers and management teams are trained and certified inapplying thin film intumescent coatings, sprayed acoustical and architectural materials, and virtually every proprietary Cementitious and fiber fireproofing product available in today’s market.
OMNIV technical team can provide the following services:
- Bill of Quantities preparation and study.
- Fire proofing recommendation – As experts in a number of Fire proofing system you can expect more with the wide variety of brands & systems that we offer.
- System thickness design for each Steel structure section providing the effective thickness for the fire rating requirements.
- Extensive knowledge of global standards › Fire Engineering design
- Integrity assessments
- Material and cost estimation
- Practical solutions to industry challenges › Bespoke fire testing capability
Fire Resistant Wall & Ceiling / Calcium Silicate Insulation
Acoustical Plasters Spray-Applied
Corrosion Protection & Coating Systems
With the advantages of having combination of the most versatile product range such as PROMATECT®, PROMASIL®, MONOLUX®, DURATEC® and MONALITE®, OMNIV provide application services of calcium silicate boards in a varied and extensive selection of markets all over the kingdom.
Petrochem
- Back-up insulation for refining and petrochemical furnaces
- Industrial process piping and equipment
- Flare insulation
Glass
- Forehearths
- Melting furnace and regenerators
Multi metal
- Steel and torpedo ladles
- Forging and heat treatment furnaces of steel and iron
- Aluminum launders
- Anode baking furnace
- Aluminum smelting and holding furnaces
- Reduction cells
- Coal, oil, gas fired, and nuclear power plants
- Fuel cells and reformers
- Solar power plants
- Indoor insulation of buildings (climate board)
Furnaces
- Cement plants(preheaters, cyclones, coolers)
- Heat treatment furnaces
- Ceramic furnaces
- Induction furnaces
Chimney
- Wall protection of fi replaces
- Casing of domestic chimneys
- Construction kit for building centers
Transportation
- Maritime, rail, road and commercial aviation
- Aerospace and defense
Home appliances
- Storage heaters
- Domestic oven
OMNIV is a licensed installer of Arabian Vermiculite Industries and its range of spray applied acoustical plasters designed for interior and exterior sound absorption.
A Durable Spray Rough-Finish or Semi-Finish with Sound Absorption
OMNIV offer applications of Sonotex products formulated of a gypsum plaster. Used for interior applications where contact and moderate abuse may occur. It is highly abuse resistant (impact, abrasion) and allows substrates to breathe. They are low maintenance: easy cleaning and patch can be patched repaired.
It is ideal for new construction, repair, remodeling work.
It can be applied over gypsum panel, concrete, base coat plaster and steel surfaces. Used in convention centers, schools, educational and religious facilities.
Pipeline Coating Rehabilitation
For some situations, the only feasible, long-term solution to restore coating system integrity and satisfy cathodic protection criteria is pipeline coating rehabilitation. OMNIV provides a single source for pipeline coating rehabilitation projects with seamless coordination of the work force and multitasking to reduce project delays and standby.
Component parts of a pipeline coating rehabilitation project include:
- Pipe Excavation
- Removal and Disposal of Existing Coating
- Pipe Surface Preparation
- Pipe Defect Inspection and Repair
- Coating Application
OMNIV technical team can provide the following services
- Bill of Quantities preparation and study.
- System design to manage the process of documenting all Corrosion cases within a project.
- Corrosion Protection recommendation according to project specifications.

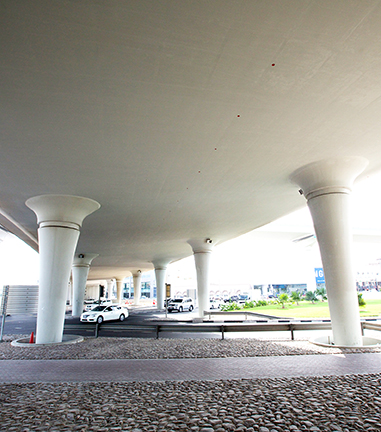

Bridge Solutions

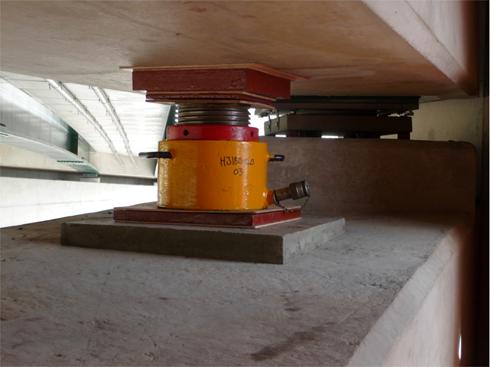

Structural bearings are important elements of structures, especially in large infrastructures such as bridges, heavy buildings, high-rise buildings, ensuring load transfer, movement, rotation, vertical and horizontal restraints as required by the design at critical locations in a structure.
i. Elastomeric bearings for low and moderate loads.
ii. Pot bearings, for higher loads. They might accommodate small rotations.
iii. Spherical bearings, for high loads and high rotation requirements.
iv. Special bearings, including shear keys, up-lift systems integrated in bearings, temporary ILM bridges, and seismic bearings.
Elastomeric Bearings are designed for use in bridge and building construction – under pre-cast concrete beams, steel beam supports and other support points – as local load carrying components.
REiNWEL® provides application services to virtually every type of Elastomeric Bearings covering:
High capacity Steel Plate Laminated Bearings
Elastomeric Laminated Bearings are designed for use in bridges and similar types of structures. They act as a load transfer element that is capable of supporting a vertical force whilst simultaneously absorbing horizontal and rotational translations that may occur.
REiNWEL offers an application of 3 grades Steel pot bearing
- Fixed
- Guided
- Free
Standard Reinforced Bearing Pads and Strips.
Generically referred to as a “reinforced” Bearing Pad or Bearing Strip, they are pressure molded from a high-quality Natural Rubber of 60 IRHD hardness.
These elastomeric bearing pads provide an economical solution to problems caused to a structure by static and dynamic effects of traffi c or wind / variations of temperature, creep, shrinkage or pre-stressing / vibrations and impacts. The pads provide freedom between two elements of a bridge structure absorbing stresses from horizontal and vertical loads and rotations.
REiNWEL Structural Solutions can facilitate the provision of specialist installation teams to undertake site inspection, installation, repair and maintenance activities associated with all expansion joints and seals.
Our well respected teams consist of highly trained and experienced installers led by technically qualified engineering personnel that work closely with our customers. Our own in-house engineering design and manufacturing capabilities ensure we have the most effective, innovative and cost efficient outcomes within the industry.

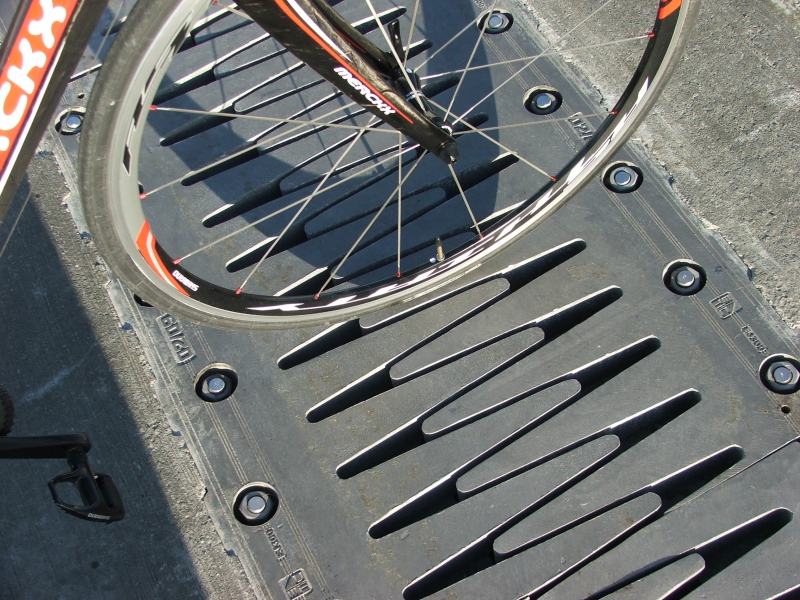

Expansion Joints – Small Movements
These designs are suitable for multi-level car parks, plaza decks, pedestrian bridges, and other applications that are pedestrian intense.
i. Strip Seal Expansion Joint System
ii. Polymer Nosed Expansion Joint System
iii. Aluminum Expansion Joint System
iv. Compression Seal
v. Two Part Silicone Seal
Expansion Joints – Large Movement
Large movement expansion joints are best defi ned as those that provide support across the expansion void, without exceeding the code requirement of the 85 mm ULS unsupported gap. Large movement expansion joints, particularly of the Modular type having movement capacities up to 2,000mm, require careful consideration as to the structural integrity of the bridge in this
highly stressed area. Typical block out depth is in the order 0f 400mm. Careful consideration is required early in the design process. Consultation with REiNWEL engineers is recommended.
REiNWEL application and service expertise are second to none going together with you through the process of selecting, testing, procuring and applying bridge bearing grouts that you need for your project.
REiNWEL Applications for Structural Grouting
- REiNWEL provides applications for grouting under bridge bearing plates and to fill voids, holes, and cavities or for embedding drainage pipes and other elements.
REiNWEL Applications for Fixing of Road Components
- REiNWEL’s system application for road construction and maintenance works Concrete curb bedding and jointing.

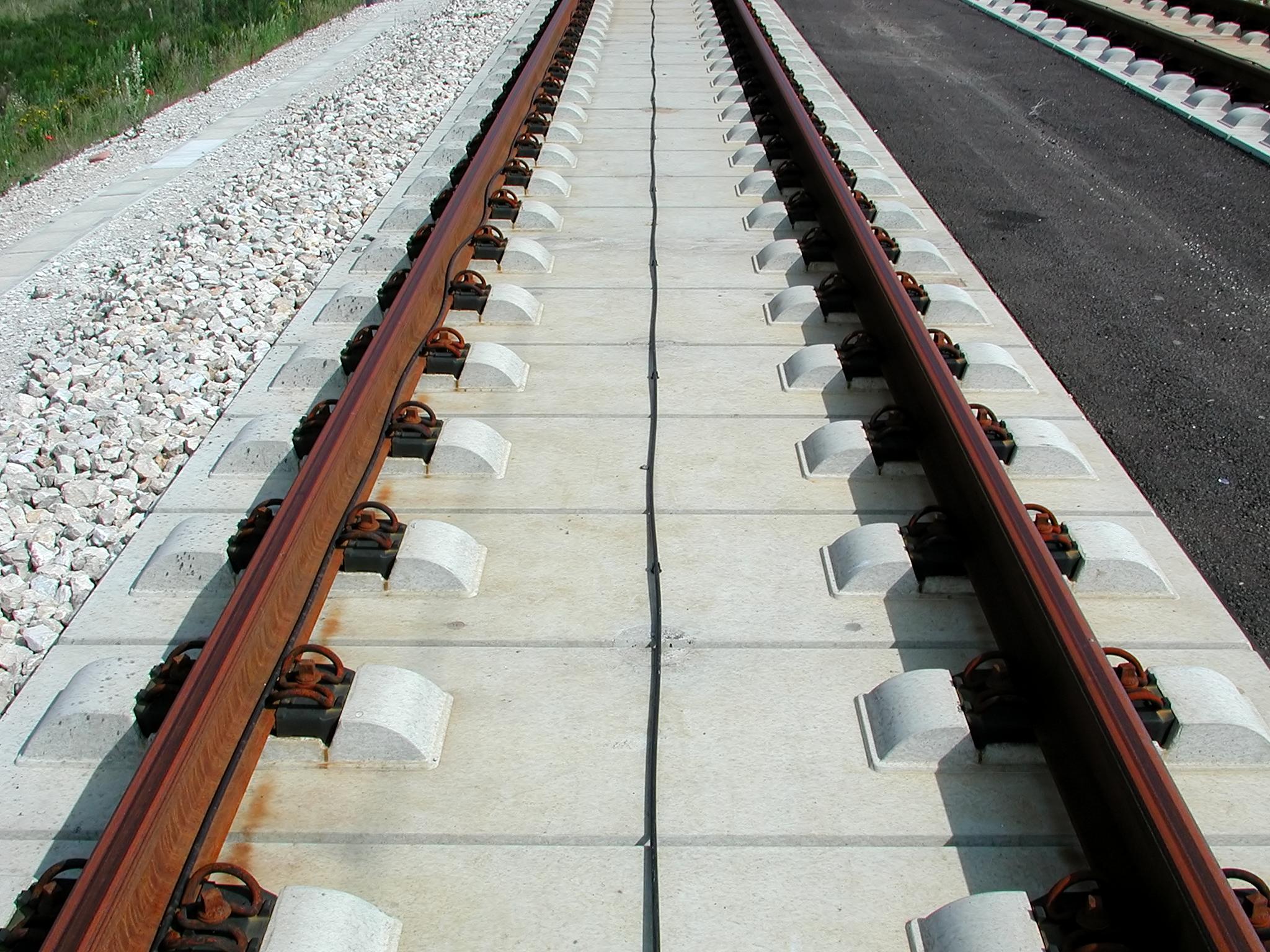

REiNWEL Applications for Rail Tracks
- Rail fixing, damping, and bedding solutions for all types of rail track systems to be installed on bridge decks
Direct rail track fixing and bedding solutions

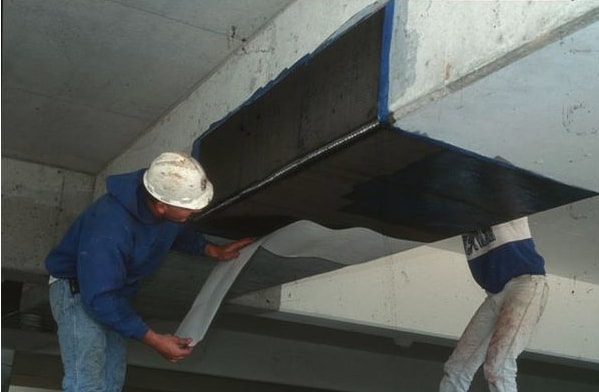

REiNWEL has been a pioneer with the installations of carbon fiber reinforced polymers based structural strengthening systems. As a leader in the structural strengthening of all types of reinforced concrete structures, REiNWEL provides a full range of fully tested applications and approved strengthening systems.
REiNWEL for Shear Strengthening
- Strengthening systems for shear strengthening of beams and columns, consisting of structural epoxy adhesives and:
Prefabricated L-shaped plates for application on rectangular T-Beams
Fabric strengthening system based on unidirectionalcarbon and glass fibers, for application on beams
and beam-column-joints.
REiNWEL Applications for Flexural Strengthening
- Structural strengthening systems for the flexural strengthening of bridge decks, beams, and girders, consisting of structural epoxy adhesives and:
The carbon fiber reinforced polymer based, pultruded plate with different E-Moduli and in various dimensions, for external application
The carbon fiber reinforced polymer based NSM system for application in near- surface slits
REiNWEL Applications for Post-tensioned Strengthening
- Structural strengthening system for the post-tensioned strengthening of bridge decks and beams, consisting of:
Tendon based on plates and special anchorage heads End-anchorage solutions based on project needs
REiNWEL Applications for Axial Strengthening
- Strengthening system for axial strengthening of columns (column confinement), consisting of epoxy adhesives and:
Unidirectional fabrics, based on carbon and glass fibers, available in a range of area weights
Repairing damaged concrete is one of the primary requirements in the maintenance of concrete bridges. REiNWEL provides full services of bridge concrete repair that has to be repaired with durable concrete repair materials. A sound and a correctly repaired concrete substrate is also the basic requirement for any additional Waterproofing, Protection or Strengthening systems to be applied.
REiNWEL applications for Horizontal Repair Works
Thin-layer repair system for bridge decks:
Bonding bridge primer for large area repairs.
Semi-fluid repair mortars for large area repairs
Thixotropic repair mortars for local patch repairs
Self-levelling, epoxy modified, cement based levelling mortars
REiNWEL applications for Vertical Repair Works
Structural concrete repair system for columns and beams:
Bonding primer where relevant.
Hand or wet spray machine applied repair mortars.
Surface levelling and fairing mortars.
REiNWEL applications for Overhead Repair Works
Structural concrete repair systems for soffits and other surfaces under live dynamic loading:
Bonding bridge primer
Hand or machine applied repair mortar
Surface levelling mortar
Our cementitious coatings are selected from top quality materials paired with our highly trained
engineering staff to ensure you get a system tailored to your specifi c needs, and our renowned team of
applicators and technicians work with you to ensure your coatings are applied correctly and effi ciently.
As a result, you know that REiNWEL coating system will always meet your requirements and perform as
promised.
REiNWEL’s Structural Solutions has solid reputation on Surface and Asphalt layers and we provide fast and efficient, getting the job done as soon as possible.
Good skid resistance, flat surface and low sound levels are needed for surface layer for a safe and comfortable drive. We at REiNWEL’s believe that to insure durability of the required characteristics of the surface layer, the surface layer needs to have:
- Sufficient resistance against deterioration
- Resistance against oil, water and minerals
- Less susceptibility to weather conditions
- Protection of the deck plate and the waterproofing layer
- High stability
- Resistance to fatigue
- Resistant to permanent deformation
- Possibility to spread the loads
Surface / Asphalt Layers services:
Asphalt layers for steel bridge decks
Asphalt layers on concrete bridge decks
Bituminous mixtures used for asphalt layers on bridge deck
Mastic asphalt
Modified asphalt concrete
Stone Mastic Asphalt
Highly modifi ed asphalt mixtures
Epoxy asphalt
REiNWEL’s Waterproofing Systems solutions allows the bridge to become robust against flaws achieving a guaranteed watertight system.
REiNWEL provides a unique service for a full range of waterproof sealing applications and systems for reinforced concrete bridges. These include:
- Joints Watertight Solutions
- Crack Injection Systems
- Bridge Deck Waterproofing Solutions
- Adhesion between the bridge and the bituminous mixture
- Mechanical resistance (loads from the traffic, thermal expansion)
- Resistance to high temperatures during the application of the hot asphalt mixture. • Concrete admixture technology
REiNWEL’s Applications for Lightweight Wearing Surfaces
- Waterproof, anti-slip systems for bridge decks:
- Epoxy-urethane System:
System consisting of an appropriate substrate primer with elastic waterproof wearing layer with or without ballast.
-
- Pure Polyurea Spray Applied System
Fast curing pure polyurea membrane with aggregate injection system for pedestrian or cycle bridges consisting of a primer and One Shot system waterproofing and wearing layer.
-
- Top Coat Applications
Color application of top coat is suitable for both systems.
REiNWEL Solutions for Elastic Joint Sealing
- High Performance watertight joint sealing systems for use on bridge decks, parapets and other elements:
- For facade and parapet joint waterproofing
- For bridge deck and deck waterproofing edge terminations • For facade joint waterproofing
REiNWEL Solutions for Waterproofing Cracks
Structural bonding and flexible watertight injection systemsfor crack sealing in concrete structures:
- For the surface sealing of bridge decks:
Flexible polyurethane and acrylic resin based injection systems.
- For structural cracks and void repair:
Application of epoxy resin based systems.
As a Specialty repair contractor, REiNWEL is not limited to a single concrete repair method; our experience and expertise combine specialized and conventional concrete repair methods to provide the most practical solution for all concrete repair projects.
Concrete is widely used for everything from foundations to bridges. Water tanks, buildings, and even dams can be made with concrete. It’s a strong, durable, and well understood material. From small concrete repair projects to multi-faceted full scale restoration projects within the Kingdom,
REiNWEL can deliver on every phase including:
Assisting owners and engineers in problem identifi cation.
Development of concrete repair options and feasibility studies.
Budget pricing of repair options and delivery options to meet your facilities needs.
Turn-key delivery and management of the complete repair process.
Design-Build Contracts Maintenance Contracts
We offer Concrete repairs are done to concrete structures which experienced concrete degradation caused by fi re, aggregate expansion, sea water effects, bacterial corrosion, calcium leaching, physical damage and chemical damage. Full-depth replacement & Concrete Injection – Using high technical concepts, Structural and cosmetic repair systems.
Your concrete repair / resurface project may be in:
- Finish floor in living space
- Exterior walkway / patio
- Subflooring in a living space
- Pad for light structure
- Garage or basement floor
- Steps
- Driveway / Parking Area
- Pool Decks
We offer solutions for all types of concrete structure deterioration / problems such as:
- Honeycombing & Pinholes
- Shutter Removal Damage
- Curing & Shrinkage Cracks
- Static Movement & Settlement Cracks
- Low Cover / Exposed Rebar
- Wet to Dry Casting
- Voids/Mechanical Damage
- Rain Damage Slab
- Live Movement & Settlement Cracks
- Damage Arises & Edges
- Filing Lifting Eyes & Spacers
- Grouting Bases / Precast Element
For the large jobs and small jobs in cutting, drilling, repair and rehabilitation, We at REiNWEL Structural Solutions have the tools and the industry knowledge to provide a quality service. Our range of specialist services covers all types of projects in the construction industry.
REiNWEL Concrete Cutting And Diamond Coring
We provide diamond drilling for those tough jobs, concrete sawing for floors and walls and concrete cutting. For a clean, quiet and precise concrete removal service you might be interested in our hydraulic bursting and crunching which is the latest advancement in demolition and repair.
We are the professional and quality contractors you can rely on. Our dedication to working within the industry standards. So for cutting and diamond coring services in the Kingdom for we are a name you can trust.
REiNWEL Concrete Cutting And Diamond Coring Offers You:
Knowledge, Experience, Expertise
Core Competencies in Large Scale Projects
Capabilities to Fulfi ll Requirements for Jobs of Varying Sizes
Quality Control
Outstanding Service
On Time Job Execution
Cost Saving Strategies
Our Services includes:
- Hand sawing
- Ring sawing
- Road sawing
- Diamond grinding
- Core drilling
- Wall sawing
- Wire sawing
- Concrete removal.
Using its experience in the specification and design of bridge solutions, combined with its extensive
structural engineering expertise, REiNWEL is in the unique position to be able to design bespoke
Post-tensioning bridge decks to meet clients’ requirements, offering an improved level of operational
flexibility and accommodating the client’s needs.
Deck Tension Services:
Transverse deck post-tensioning
Done to strengthen the deck slab in direction perpendicular to traffi c flow. Its purpose is similar to longitudinal post-tensioning, only the direction of application is different. It is usually done in bridges where the deck width is large, which makes it diffi cult to design the deck slab.
Longitudinal post-tensioning
Longitudinal post-tensioning helps keep the precast bridge deck in compression and avoid problems such as leaking, cracking, spalling, and subsequent rusting on the beams at the transverse panel joints.
REiNWEL understands that Surface failures are the most common concrete damages. Whether due to the freeze-thaw action, aggregate pop-outs, or corroded reinforcing steel, REiNWEL’s repair methods are the perfect solution to such damages.
We offer Specialties in:
- Epoxy bonding method
- Stitching Method
- Grouting Method
- Overlaying
- Jacketing
- Drypack Method
- Routing & Sealing method
- External Stressing
- Blanketing
- Repairing spalling and disintegration.
- Prepacked concrete method
- Replacement of concrete
Our Services
We at ASPECT Specialized Architectural Solutionshave highly experienced and talented Project Managers oversee every facet of a project –Focused on quality control, manpower efficiency, project time schedule and cost-effective systems- ensuring the clients superior results.
Acoustical ceiling systems and panels reduces reverberation and noise transmissions.
The control or elimination of environmental noise pollution has its effects on the quality of life isvery imperative; As such, architects and designers have turned to ASPECT Architectural Solutions to provide answers for their acoustical needs thatwill not only look great but functions itself to the ambiance needed.
Custom built ceilings nowadays are found in hospitals, courtrooms, boardrooms and auditoriums taking advantage of its acoustic benefits.
ASPECT installs acoustic ceiling systems for:
- Retrofit &New installations
- Hotels
- Offices
- Schools
- Function Halls & Auditoriums
- Residential homes
Our service offerings include:
- Acoustical Drop-In Ceilings
- Wood and Composite Ceiling Systems
- Steel & Metal Ceiling Systems
- Security Plank Ceilings for Restricted Areas
- Linear Designed Ceiling Systems
- Fabric Stretched Ceiling Systems
- Filtered Ceiling Systems for Cleanroom Environments 8. Plaster and Acoustical Sprayed Systems
- Wall and Ceiling Absorbers & Diffusers
Advantages in choosing ASPECT S.A.S
- Rapid installation – minimum down time
- Certified & trained applicators
- Projects Completed on Schedule and Within Budget
- Superior Project Management
- Labor and Material Controls
- Value Engineering Analysis if Requested
- Time proven installations
- ADA compliant Systems
- Wide variety of system options
ASPECT S.A.S. works closely with a wide range of end users and main contractors to provide a professional, expert service to its clients.
The contracts team will manage the project from survey and specification through to installation and hand over, removing risk and saving time for the customer.
A full supply and installation service is offered for all ASPECTS protection systems.
An introduction to wall, corner and door protection.
A wall protection system for walls, corner and doors, providing an essential barrier against damage caused by the general flow of wheeled and pedestrian traffic.Specifying wall protection can help to reduce the levels of everyday damage to building interiors, minimize the need foron-going repair and maintenance, reduce life cycle costs, improve building accessibility and enhance the long term appearance of building interiors.
Aspect Installs Wall Protection Systems For Building ZonesReceptions & Entrances
- Corridors & Circulation Areas
- HospitalAccommodation
- Restaurants & Cafeterias
- Hotels
- Clinical Areas
- CommercialKitchens
- Offices
- Schools
- Back-of-house
Wall Protection Guide:
Wall Cladding Systems
Wall cladding systems are available in a range of sizes, colors, finishes and textures to accommodate specification requirements. Bespoke cutting and design options available. Finishing options include thermoforming, a range of trims, color matched silicone sealant and weld rod.
Door Protection
Doors and door frames are vulnerable to damage due to the constant flow of pedestrian and wheeled traffic. ASPECT offers a variety of door protection solutions to prevent damage, conceal existing damage and coordinate or contrast with other elements of the building.
Wall Guards & Wall Strips
ASPECT provides wall guards and wall strips in various styles and sizes to correspond to the needs of different environments. Wall guards are robust in design and used in areas where frequent levels of impact occur. Wall strips are a cost effective alternative to protect surfaces from scuffs and scrapes.
Bed Head Protectors
ASPECT’s solutions for bed head protectors provides maximum protection against damage caused by frequently moved beds. They are designed to help prevent damage to walls and wall mounted equipment from beds that are continuously moved up and down as well as in and out of busy hospitals and nursing homes.
Handrails & Combination Rails
Handrails & combination rails are designed to offer pedestrian guidance and support, in addition to a degree of surface protection against damage caused by wheeled traffic.
Corner Protection
Corners are one of the most vulnerable areas of a building and when left exposed are often damaged from everyday wheeled and pedestrian traffic. ASPECT offers a variety of material types, styles, and heights and is ideal for reducing maintenance costs and maintaining interior appearances.
Dual-Rail
Dual-Rail combines a handrail and wall guard linked together with a specialist bracket to provide an ideal solution for environments where pedestrian support is required in addition to protection against impact.
Floor Mounted Protection
A range of floor rails, posts, and bollards to protect building interiors and equipment from potential damage in both front and back-of-house applications. These products provide both a visual and physical barrier to impact and also help to minimize damage when impact does occur.
We at ASPECT Specialized Architectural Solutions are dedicated in providing effective solutions to your expansion joint needs, using the up to date techniques and highest quality materials from world leading manufacturers.
Having executed numerous expansion joint projects and is often called upon to provide its expertise for the most complex expansion cases.
Our Certified applicators are known for their in-depth technical expertise, problem-solving abilities, and surgeon-like precision.
Structural movement occurs as a result of several factors including thermal expansion and contraction due to changes in temperature, seismic occurrences, and wind force affecting the structure.
Expansion joints are designed to relieve stress on structural materials when movement occurs. We are a certified installer of the most expansion joint manufacturers systems.
Expansion Joint Covers
- Thermal
- Seismic
- Exterior
- ControlJoints
- FireBarrier
- Flexible Water Gutter
ASPECT Installs Expansion Joints for :
- Retrofit & New installations
- Parking structures, malls, plazas, stadiums & bridges
- Seismic & thermal uses
Our Systems
- ADA compliant Systems
- WatertightSystems
- Wide variety of system options – cover plates, seals & glands.
ASPECT provides a secure fixing between the stair edging and the step which is essential to ensuring a safe installation. The stair edging profile, type, and condition of the substrate and the application will affect the type of fixing method required.
This is a system that installed on staircases for maximizing grip and reducing the risk of accidents. It considered as one of the most effective and excellent way to protect people from slipping and tripping down the stairs.
These sheets enhance your grip over the stair cases and resist you from falling down. Apart from this, these strips also enhance the look of your stairs.
Stair Edging and Illuminated Stair Edgings
Selecting the Stair Edging and Floor Trims
Shape of Step
Select the correct stair nosing for the shape of the step – this should be a tight fit to the step to ensure that the profile does not lift or rock during use. There are four main stair nosing shapes to choose from (see below). Kinked face profiles can be used on square and some rake back stairs
Adhesive only fixing
A specialist adhesive designed to securely bond stair edgings, eliminating the need for screws and screw head cover plugs, providing a neater finish.
Mechanical and adhesive fixing
A combination of screw fixings, cartridge adhesive and screw head cover plugs are used to achieve a secure fixing
Illuminated Stair Edgings
ASPECT offers a range of solutions and decorative lighting profiles for stairs.
Profiles have been designed specifically to suit dark interior environments such as auditoria, where light is required for safety but should not detract from the primary function of the installation. By utilizing LED technology, the system offers an extra low voltage (12v) alternative to mains voltage lighting.
ASPECT provides an effective barrier matting system solutions, when correctly specified, will help to minimize the risk of slip accidents caused by wet flooring, reduce maintenance costs and improve the appearance of internal floorcoverings by significantly reducing the amount of dirt and moisture tracked into a building.
Matting system selection guide
- Identify volume &type of traffic
- Load weight of foot &wheeled traffic
Heavy Foot Traffic
- Railway station
- Stadiums
- Airports
- ShoppingCenters
- Largehospitals
- Supermarkets & department stores
Medium Foot Traffic
- Offices
- Hospitals
- Schools,
- High street shops
- Hotels
Where to use Barrier Matting
Barrier matting can not only be used at a building’s entrance and access points but also in other areas that are subject to increased risk of soiling and heavy wear.Inmany cases the optimum performance is achieved by combining different types of barrier matting.
Zone 1 – Exterior Entrances & Access Points
Primary Barrier Matting
- Removes excess dirt prior to entering a building using a scraper wiper.
- Increases the effectiveness of internal primary and secondary matting.
- Ideal in heavy traffic areas.
Zone 2 – Interior Entrances & Access Points
Primary Barrier Matting
- Removes and retains dirt and moisture to prevent ingressto adjacent floorcoverings through a combination ofscraper andtextile wipers.
- Available with a choice of wipers that offer excellentappearance retention when cleaned in accordance with ASPECT recommendations.
- Available in a choice of open and closed constructionand in different gauges to suit both recessed and surfacemounted options.
- Available to suit varying types and volumes of traffic.
Zone 3 – Interior Circulation Areas and Some Interior Entrances & Access Points
Secondary Barrier Matting
- Removes and retains dirt and moisture to prevent ingress to adjacent floorcoverings.
- Ideal for use in internal areas subject to a risk of spillage and soiling such as canteen / vending areas or breakout areas within an office environment.
- Products are produced from high performance fibres that are suited to intense cleaning to ensure long life appearance retention.
- All products carry the additional protection of a wear warranty
Zone 4 – Other Areas
Secondary Barrier Matting
- Removes and retains dirt and moisture to preventingress to adjacent floorcoverings.
- Ideal for use in internal areas subject to a risk ofspillage and soiling such as canteen / vending areas orbreakout areas within an office environment.
- Products are produced from high performance fibresthat are suited to intense cleaning to ensure long life appearance retention. All products carry the additionalprotection of a wear warranty.
A raised floor is a data center construction model in which a slightly higher floor is constructed above the building’s original concrete slab floor, leaving the open space created between the two for wiring or cooling infrastructure.
ASPECT’s raised floor system offers impressive in-built properties and truly state of the art technology. It is the ideal product for almost any field of application. Our certified applicators are the leading experts in applying multiple types of raised floor systems.
Advantages of ASPECT raised floor systems:
- NaturallySustainable
- Load Bearing capacity
- FireProtection
- SoundProtection
- SeismicSafety
- JointPermeability
- StaticElectricity
- Floor Coverings
ASPECT installs raised floor systems for:
- Foyer and reception areas
- IT control centers
- Training and research rooms
- Office and design areas
- Industrial and workshops
ASPECT S.A.S. offers a full range for Design & Construct projects as well as Architect Specified Projects for the supply & installation of wide range of quality products with competitive pricing structure.
ASPECT S.A.S. is totally focused in regards to projects of a commercial nature only and our success in the industry has been attributed to a total commitment in maintaining a high level of quality installations, on time performance & competitive pricing.
We recognize the value of customer satisfaction in a competitive world and the major contribution to this satisfaction is made by the supply and installation of products to an assured level of quality.
We offer floor covers for:
- Offices
- Schools and Universities
- Hospitals and Medical Facilities
With our installations we offer:
- Use color and design to differentiate space
- Make a statement in reception areas
- Emphasize reception desks
- Highlight breakout areas
- Create walkways and define circulation routes
ASPECT’s Interiors & Fit-Out Division offers suspended ceilings and partition works as well as turnkey fit-out for all types of general construction projects catering to the requirements of brand owners, merchandised vendors, offices, hotels and building owners / users.
- Suspended Ceiling Works
- Bulk Heads / Cove lights / Pelmets
- Tileceilings
- Gypsum Board Ceilings: Flat and Multilevel
- Furniture Assembly Services
- Partitionworks
Suspended Ceiling works
ASPECT offers all type of suspended ceiling works suitable for residential towers, hotel buildings, offices and industrial buildings. The Suspended ceilings are designed to cover MEP services passing below slab and to enhance acoustic performance while providing an aesthetically pleasing decorative / architectural finish.
Bulk Heads / Cove lights / Pelmets
Gypsum bulkheads and vertical portions of the suspended ceiling are formed to place A/C grills, curtains, indirect lights, artificial beams and to achieve an architectural finish. Gypsum bulkheads are formed at the termination point of the suspended ceiling, consist of gypsum boards, furring channels and perimeter trims. They are filled with a joint compound and then sanded to achieve a smooth final finish.
Tile ceilings
Tile ceilings are installed for architectural finish requirements and are widely used in commercial and residential buildings. Tiled ceiling are suspended in an exposed “T” grid system and triangular channel suspensions are used for concealed systems.
Tiled ceiling types include vinyl-faced gypsum tile ceilings, calcium silicate board ceilings, GRG tile ceilings, metal tile ceiling, aluminum tile ceilings, mineral fiber tile ceilings, acoustic tile ceilings, mirror finish tiles and micro perforated aluminum tiles.
Gypsum Board Ceilings : Flat and Multilevel
Gypsum board ceilings consist of main channels, caring channels, hangers, perimeter angles, fixed to gypsum board, taped, jointed and sanded to a smooth finish. Regular gypsum boards are used for dry areas, moisture-resistance gypsum boards are used for wet areas like toilets and pantries, and fire-rated gypsum boards are used as required by specifications
Furniture Assembly Services
ASPECT provide assembly service for bedroom, Living and kitchen furniture set: bed frame, night stands, TV stands, bookcases, computer desk, L shaped desk, Hutch, bookshelf, Sofa, sofa beds, chest of drawers, dressers, loft Bed, bunk bed, crib, storage cabinet, etc…
Our expert team assemblers key offerings
- Furnitureassembly.
- 30 DAYS Guaranteed on all assembly service
- Buy the furniture – We come to your home or office and assemble your furniture that came inside a Box; after delivery.
Partition works
Gypsum board partitions are widely used in commercial and residential buildings, industrial projects and offices. Gypsum board partitions are quick to install and relocate, and can accommodate MEP services, while reducing load to the buildings.
Types of Partitions
- Partition types include liner wall partitions.
- Dry wall partitions with GI studs and tracks.
- Fire-rated wall partitions.
- Acoustic wall partitions.
- Staggered wall partitions
- Curved wall partitions
- Aqua panel wall partitions.These partitions are used for separation walls, internal walls, thermal wall insulations, fire rated walls and acoustic-purpose walls.
Fit-out works
As an interiors division, ASPECT offers turnkey fit-out solutions including ceilings, partitions, carpentry works, flooring and painting works for merchandised vendors like.
The Interiors
Team and work process
ASPECT has a highly dedicated, well-trained and experienced Interiors team for architectural design and project management. Our core professionals are able supported by a well-selected workforce forming a tight knit community of skill and talent providing customers the interior of their choice.
The core team of architects and interior designers first carry out site inspections to study and determine the requirements of the customer. The deepest attention is paid to the minute details in designing the layouts for the new spaces (offices, showrooms etc.) in close coordination with the customers’ consultants and architects.
It is only after each of these stages are thoroughly completed, approved and recorded that our skilled carpentry team are brought in to complete the works per specifications, designs and client schedule.
ASPECT offers solutions to suit most contract applications, from ‘critical’ clean areas where a homo- geneous finish is essential such as hospital wards, treatment rooms, and food & pharmaceutical environments, through to commercial office, education or retail environments where functionality needs to be combined with aesthetics.
Skirtings, cove formers and capping strips are used to provide clean, neat solutions for junctions where the floor meets the wall.
Aspect Installs Variety Systems of Skirtings As
PVC Skirtings
Set-in
Typically used with resilient floor coverings, this type of skirting is welded to the floorcovering in order to create an impervious seal. Ideal for critical clean areas (e.g. treatment rooms, pharmaceutical production) or areas subject to wet cleaning (e.g. school
and hospital corridors). Selected set-in skirting are available in 15m coils in order to reduce the number of vertical joints required
Sit-on
Typically used with hard floorcoverings. Ideal for use in areas where a neat, clean finish is required but an impervious seal is not required e.g. general circulation areas in schools and hospitals.
Flat
Used primarily with textile floorcoverings to form a neat, low-maintenance alternative to timber skirting.
Capping Strips & Cove Formers
Used when floorcoverings are continued up the wall. Cove former ensures a consistent cove is achieved and supports the floorcovering at a weak point. Capping strips provide a neat finish where the floorcovering stops.
Stratum PVC skirting
An alternative to traditional timber skirting, this 10mm thick skirting provides the look of painted wood whilst offering a low maintenance solution. Ideal for creating a neat finish in non-critical clean areas, and in all contract environments where ongoing maintenance and aesthetics are important factors.
Metal skirtings
Modern alternative to PVC or timber skirting. Creates a modern, hi-tech finish for environments such as commercial office, retail and leisure. Low voltage cable management system also incorporated in selected profiles
Our Services
Application of Specialty Coatings for
Containment of Toxic Liquids
Successful decontamination is essential in protecting laboratory workers. It also reduces the likelihood of cross contamination. The decontamination regime can be as simple as washing with detergent and water through to steam cleaning.
It is therefore crucial that the coating systems are effective enough to create a contained area whilst the cleaning process takes place. Coatings must be seamless between ceiling / wall and wall / floor junctions. We have gained valuable experience in developing successful jointing procedures where floor and wall coatings meet, working closely with designers and coating manufacturers.
The coating systems we apply are specifically designed to meet these rigorous operations. As air pressures and temperature vary, the elastomeric coating system will resist and absorb impact without suffering damage. With correct application and maintenance, systems will remain fully active against micro-organisms for ten years. A simple recoating process will restore protection fully.
Complete Parking Deck Vehicular Coatings Systems
Because they perform so much and simultaneously have to be very affordable due to the surface sizes. Here, PRUNOVA offers reliable protection for concrete and building structures, safe traversable on foot or by vehicle and an attractive appearance. And keep an eye on the required cost relations.
System advantages of the floor coating systems for Parking Deck
- seamless, reliably sealing
- low surface weight
- stressable, extremely durable
- very high resilience to chemicals (fuels, oils, de-icing salts, acids)
- good abrasion-resistance for rolling traffic
- anti-slip surface, even when wet
- weather resilient
- UV-resilient sealable
- easy to clean, insensitive
- resistant to rearward permeating moisture
- available in various colors
The industrial floor is literally the basis of the production process and therefore plays a major role in the maintenance of buildings, working conditions and hygiene. Production techniques are constantly becoming more advanced, and floor treatments increasingly have to meet very specific requirements. Floors for non-industrial applications such as public buildings, hospitals and commercial developments also have to meet set requirements.
For high-demand commercial and industrial settings,PRUNOVA’s Industrial Floor Coating Systems are the optimum coating system designed for most projects conditions. Whether the surface must tolerate significanttraffic, large equipment, abrasion, orharsh chemicals, PRUNOVAoffers versatile systems that fit project environment.
ADVANTAGES
- Highly customizable, component-based coating systems • Variety of colors, surface textures, gloss levels
- Easy-to-maintain, seamless surface
- Improves light reflectance and facility aesthetics
- Abrasion, chemical & impact resistant
Typical Applications
Commercial & Institutional
- Correctional institutions
- Schools/education facilities
- Sports & entertainment venues
Healthcare
- Animal holding facilitiese
- Veterinary
Industrial & Manufacturing
- Beverage processing
- Manufacturing, heavy
- Water treatment
- Chemical processing
- Manufacturing, light
- Food processing
- Pharmaceutical production
Transportation
- Aircraft hangars
- Transportation terminals
- Automotive dealerships
- Vehicle maintenance areas
Common Areas
- Aisleways/corridors
- Laboratories
- Mechanical rooms
- Warehouse/distribution
- Chemical areas
- Loading docks
- Mezzanines
- Clean rooms
- Lobby areas
- Restrooms & shower areas
Antislip Floors & Walkways
PRUNOVA offers an extensive range of quality non-slip floor applications that are the ideal solution to the problem of fixing slippery walkways including slippery floors, ramps, stairs, steps and landings. PRUNOVA can assess your individual anti-slip needs and budget and provide a comprehensive selection of options that include metal-backed and vinyl-backed floors as well as a range of non-slip coatings.
Specialised Coatings
The PRUNOVA team can apply heavy-duty specialized non-slip coatings to floors, ramps, walkways, stairs and steps.
Alternatively, PRUNOVA can apply non-slip coatings at factories to sectional walkways, stairs or floor plates supplied with the selection of high-quality materials.
- Coatings to suit Steel, Checkerplate, Concrete, and Asphalt
- Extra heavy-duty epoxy formula ideal for vehicular traffic
- Choice of four non-slip grades from Fine to Heavy Industrial
- Prompt on-site or factory coating service
Anti-static Systems
Prunova’s Anti-Static systems protects against Electrostatic discharge (ESD) in Industrial buildings and facilities.
We offer Special systems for your Electronics, Electronics Assembly, Military Facilities,Chemical manufacturing facilities, Pharmaceutical and Healthcare facilities.
The Anti-static flooring from Surface Solutions safeguards both sensitive electronic equipment and personnel from an electrostatic discharge (ESD).
Prunova’s aim is to provide Surface Solutions, expert consultation and installation, and a full line of anti-static flooring solutions in addition to other industrial flooring systems. We are committed to 100% customer satisfaction on every project.
Conductivity refers to the ability of a material to conduct an electrical charge to earth or ‘ground’. In non-technical terms, this can be described as the ability of a material to carry or ‘conduct’ an electricalcurrent.
The electrical conductivity or the specific conductance of a flooringsystem is therefore also a measure ofthe material’s ability to conduct an electric current. An electric current is a quantitative measure of theamount of charged particles passing through a medium, and in order for an electric current to be created, there needs to be an electrical potential difference between two points in a conductive medium with anenergy source to drive the charge.
Anti-static Coatings
- Anti-static Epoxy flooring system
- Chemical Resistant ESD Coatings
Bench Matting and Flooring solutions
- Bench Matting
- Floor Matting
- Hard Wearing Conductive Matting
- Heavy Duty Hard Wearing
- ESD Matting ESD Anti Fatigue Matting
- Dissipative Three Layer Matting
- ESD Anti Fatigue Tiles
- ESD Interlocking Floor Tiles
Specialized Matting
- Contamination Control Matting
- Cushion Matting
Application of Heavy Duty
Seamless Epoxy Resin Floor Screeds System
Application of Epoxy Mortar System
Prunova’s waterproofing systems are fully certified seamless solutions and can be used on the vast majority of applications. It can be used to waterproof all types of reinforced concrete roofs, basements and other below ground structures. Our goal is to define the appropriate waterproofing strategy and type of system for a specific project, it is important to consider not only the ground conditions but also the project requirements of the owner. The functionality and future use, service life and the total cost of ownership should also be considered.
They are suitable for both refurbishment and new-build projects, and provide cost effective, long term solutions.
Waterproofing Systems
- Fully Bonded Membrane System
- Compartmentalized Membrane System
- Liquid Applied Membrane System
- Waterproof Mortars and Bituminous Coatings
- Watertight Concrete
- Cavity Drainage System
- Flexible Waterproofing of Tunnels
- Waterproofing for Bridge and Decks
- Waterproofing for Balconies and Walkways
- Repair and Refurbishment Solutions
Steel and Concrete Tanks
Waterproofing Systems
Prunova’s Steel and Concrete Tanks Waterproofing System are used for Tanks that stores potable water, fire suppression and waste water processing are not naturally waterproof.
Whether it be a non-soluble crystalline product that becomes part of the substrate or an exterior sealing product, if the concrete surface is not prepared properly before the application, premature failure of the concrete waterproofing and deterioration of the substrate is inevitable. Untreated joints in concrete structures are natural conduits for liquid migration and over a period of time can lead to serious leaks and possible structural failures. We waterproof industrial and commercial concrete structures such as buildings, bridges, tunnels and walls.
Tank Linings
Applications such as potable water tanks, sprinkler tanks, attenuation tanks, clean and dirty water systems require a specific approach to keeping water in and protecting groundwater against pollution.
Potable Water Tanks/Pits and Ponds
Potable water tanks and reservoirs can be protected in various ways including the use of FPO sheet membranes and spray applied systems. Joints and cracks in the structure are commonly sealed using the SG system.
Primary and Secondary Sedimentation Tanks
Retention pools, tanks of sewage water or chemical effluents require chemically resistant linings for protection of the subsoil and groundwater against pollution. Following the specific requirements sheet membranes, liquid membranes based on polyurethane or polyuria epoxy coatings may be chosen.
Liquid Applied Membrane System
FAST TO APPLY, CRACK-BRIDGING, POLYU RETHANE AND POLYU REA BASED LIQUID MEMBRANES.
Liquid applied membranes (LAM) are highly elastic and flexible polymeric systems, usually based on
polyurethane or polyurea resins with excellent technical properties for high performance applications. These materials are applied on prepared / primed external concrete surfaces by spraying and provide excellent solutions for complex detailing.
Liquid applied membranes will also prevent any lateral water underflowin the event of local damage. Application below the base slab is done on aspecial fleece before the structural concrete slab is placed.
Polyurea systems are ideally suited to the waterproofing of podium deck slabs and compatible with Prunova’s solutions for belowground waterproofing, thereby offering a one-stop-shop solution forwaterproofing the entire structure.
Cold Liquid Applied Roof Coating System
Negative and Positive Below-Grade Waterproofing
Waterproof Mortars and Bituminous Coatings
EXTERNALLY APPLIED SYSTEMS WITH OR WITHOUT CRACK -BRIDGING ABILITIES.
Prunova’s waterproof mortars and bitumen based coatings are rigid or semi-flexible waterproofing products.
They are supplied as ready to use solutions to seal against damp soil, seepage and percolating water. They must be pre-applied on suitable substrates under new structural concrete slabs and are generally post-applied externally on new walls.
They must be used in combination with appropriate joint waterproofing systems for construction and movement joints. Good external drainage with a permanent dewatering system is also necessary; normally using drainage pipes placed at or belowthe level of the base slabs to prevent any build-up of water pressure.
Watertight Concrete
Prunova’s Watertight Concrete System provides waterproofing for: • Basements
- Lift pits
- Retaining Walls
- Concrete facades
- Swimming pools
The benefits of the watertight concrete systems are clear :
- Time saved at design and construction stages as the need for external membranes with their complex detailing and installation is eliminated.
- Cost effective in comparison with membranes and other systems.
- Delivers maximum usable area to the occupier.
Cavity Drainage System
Cavity Drainage System creates a water management system to control water after it has penetrated the structure. Utilizing a highdensity polyethylene internal drainage membrane, the system is installed loose laidin flooring applications and attached to the wall with surface plugs in verticalinstallations.
Typical applications include:
- Walls and floors of basements
- Cellars
Compartmentalized Membrane System
HIGH PERFORMANCE, CRACK-BRIDGING AND FULLY CONTROLLED. Highly flexible waterproofing systems using PVC-P or FPO based sheet waterproofing membranes are installed externally andcover the entire basement structure in contact with the ground. The waterproofing layer is divided into‘compartments’ with a network of cast in place compatible water stops that are welded to the membrane. Prunova’s systems are used extensively in heavy civil engineering solutions or where highly aggressive conditions prevail.
Fully Bonded Membrane System
PRE APPLIED, FULLY BONDED AND CRACK BRIDGING MEMBRANE SYSTEM. This unique system produces a durable mechanical bond to the fresh concrete. In addition, the sealant prevents any lateral water underflow and migration between the membrane system and the structural concrete.
The Fully Bonded membrane system can be used to waterproof all types of reinforced concrete basements and other below ground structures. Typicalprojects are;
- Residential and industrial buildings such as housing, commercial and leisure facilities.
- Engineered structures such as retaining walls, tunnel shafts, cut and cover tunnels.
Heavy duty Balcony and Walkways
Waterproofing for Balconies and Walkways
BALCONIES AND WALKWAYS ARE EXPOSED TO THE ELEMENTS AND REQUIRE ADEQUATE WATERPROOF PROTECTION to ensure they remain in good conditionand suitable for use by the building’s occupants.
The systems incorporate our unique waterproofing membrane Prunova’s high performancewaterproofing system that utilizes a moisture-triggered curing system. Our balconysystems are available with a range of guarantees and functional topcoat optionsdesigned to suit our project/client requirements.
Our balcony systems offer a complete solution for your balcony requirements, as well as exhibiting many key features:
- Up to 20 year guarantees available.
- Excellent adhesion
- Waterproofing achieves high tensile strength
- Elastomeric – allowing for greater thermal movement
- Hard wearing
- Skid inhibiting
- Seamless technology – no seams or joints
- Vapour permeable
- UV resistant
Flexible Waterproofing of Tunnels
TUNNELS ARE BUILT WITH A SERVICE LIFE OF OVER 100 YEARS, which means that standards for tunnel construction must be high, in particular those involving sealing and waterproofing systems.
A tunnel seal has the task of protecting the tunnel construction against damage from moisture or the unintentional entry of water as well as the danger posed byaggressive water or soils and the effects of chemicals. Thus the reliable functioning of a seal is of particular significance in the case of traffic tunnels, which are not easily accessible for subsequent repairs after construction.
Urethanene&Bemto-Grout Injection
Solutions for Waterproofing Cracks
Structural bonding and flexible watertight injection systems for crack sealing in concrete structures: • For the surface sealing of bridge decks:
- Flexible polyurethane and acrylic resin based injection systems
- For structural cracks and void repairInjection low viscosity, epoxy resin based systems
Swimming pools and outdoor reservoirs
Prunova’s Waterproofing System fully protects above and below ground structures from water ingress, eliminating the need for the maintenance of any internal drainage or pumping system associated with some other solutions. Suitable for virtually any application, the system provides an effective water-tight seal for structures that must keep water out;
- Basements
- Underground car parks
- Swimming pools, water tanks, etc – structures that must retain water
This system can be combined with a range of complementary products for a comprehensive watertight solution. The waterproofing range consists of a render system for use on walls and overhead and a screed system for use on the floor.
ADVANTAGES
- Withstand high water pressures
- Bonds to the substrate
- Hard wearing surface
- No ongoing maintenance
- Follow contours of structures
- 100 year track record
- Can be used to achieve Grades 1-3 according BS 8102- 2009
- Suitable for high water table according to BS 8102-2009
Waterproofing for Bridge Decks
TO INCREASE THE DURABILITY OF REINFORCED CONCRETE BRIDGES, all concrete movement and construction joints,plus the bridge decks have to be waterproofed to prevent serious damage to the concrete, or to the embedded steel reinforcement. Due to dynamic loading, the bridge decks must be protected with elastic, crack-bridging systems to accommodate any movement and maintain the protection.
ADVANTAGES
- Elastic, crack-bridging properties, especially at low temperatures
- Resistance to chlorides and automotive chemicals such as fuel, oils and hydraulic fluids.
- Easy to install and accommodate variations in level and substrate conditions.
- Fast application to reduce traffic closure times.
Solutions for Bridge Deck Waterproofing:
- For concrete bridge decks under hot poured asphalt:System consisting epoxy overlay and liquid applied membrane.
- For steel bridge decks under hot poured asphalt: Systemconsisting HM Primer and HMwaterproofing layer.
- For steel bridge decks without asphalt topping: System consisting of HM Primer and TF waterproof wearing layer performance Watertight Concrete System.
Solutions for elastic joint sealing:
High Performance watertight joint sealing systems for use on bridge decks, parapets and other elements:
- For facade and parapet joint waterproofing: SG system.
- For bridge deck and deck waterproofing edge terminations: B, R and E edge systems.
- For facade joint waterproofing: Joint sealants.
Helicopter Pad – Helipad Coatings & Graphics
A Helipad is a special deck area on a roof for helicopter landings. Therefore these areas must be waterproof, highly mechanically and abrasion resistant, with dynamic and static crack-bridging properties. The surfaces must also be UV-light stable and non-dusting under the strong down draught from the helicopters. Usually these areas also have to include and display large two-digit numbers and/ or a logo with vivid colors. PRUNOVA’s Specialty floor coatings focuses on these things and with General Authority of Civil Aviation Approved Anti-Skid Systems for Helipad we make sure we got you covered.
